X Server

This software provides X11 forwarding functionality but does not include an X Server implementation. You need to use XQuartz to enable the X Server.

1.XQuartz Install

XQuartz Installation

brew install xquartz --cask

You may choose other installation methods

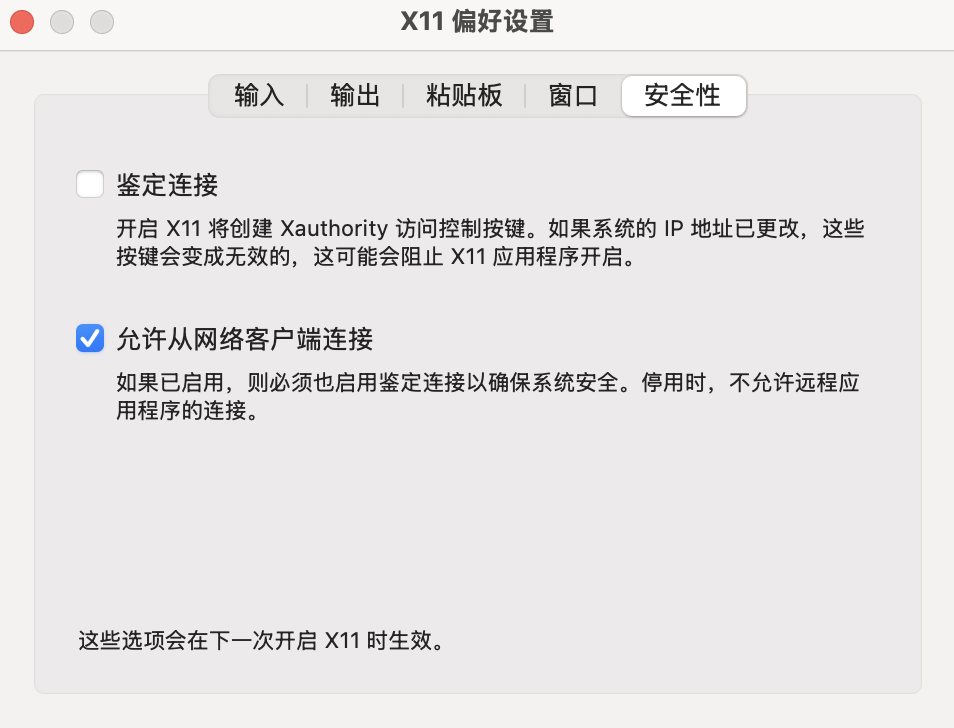

2.XQuartz Configuration

• Disable authentication for connections

• Enable connections from network clients

You need to restart the software and check if port 6000 is being listened to on your machine.

Due to Apple’s sandbox restrictions, only network connections are allowed — local socket connections are not supported.

3.Configure the Server

vim /etc/ssh/sshd_config

AllowTcpForwarding yes
X11Forwarding yes

systemctl restart sshd

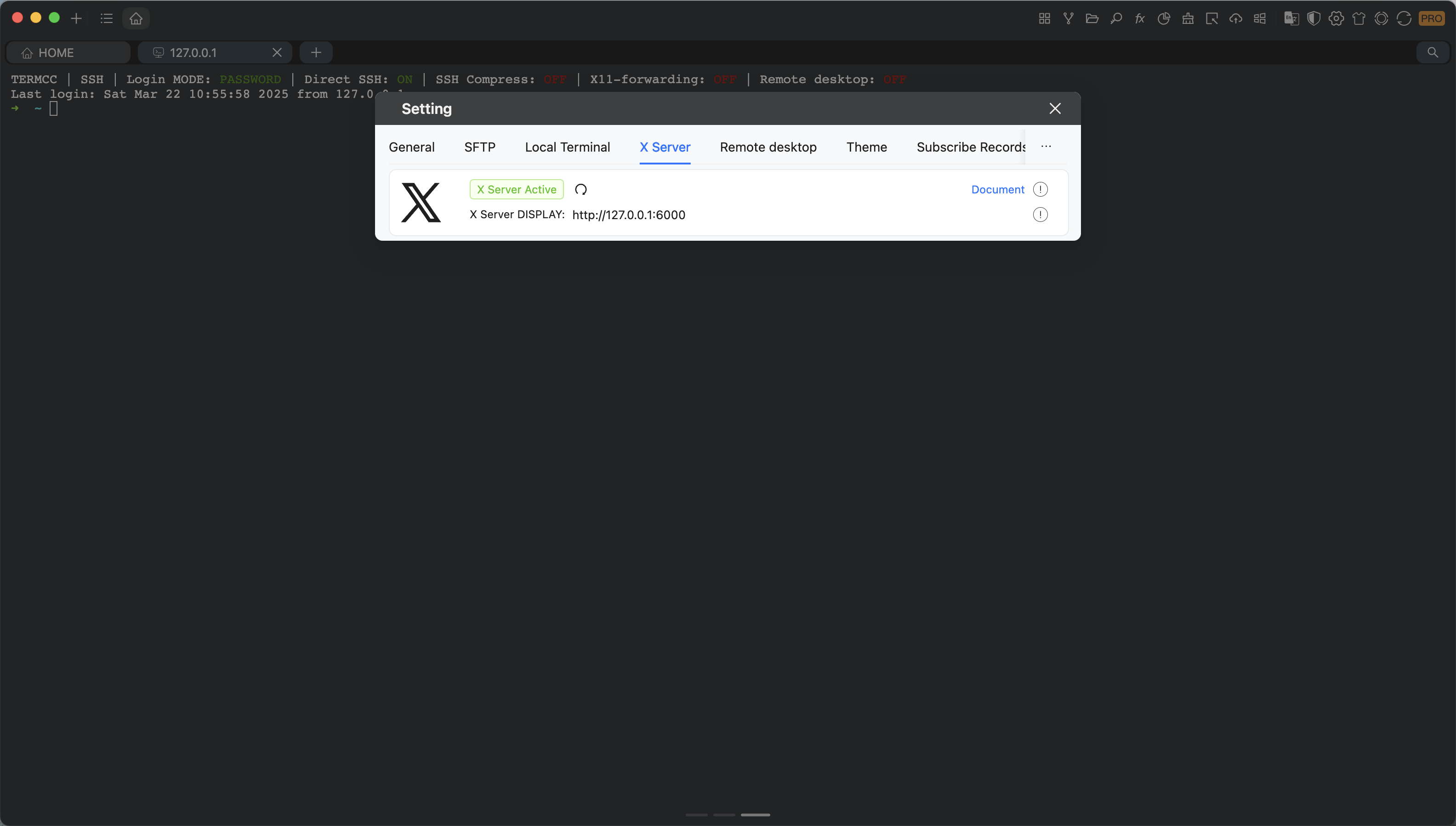

4.Check Status

5.Configure Connection

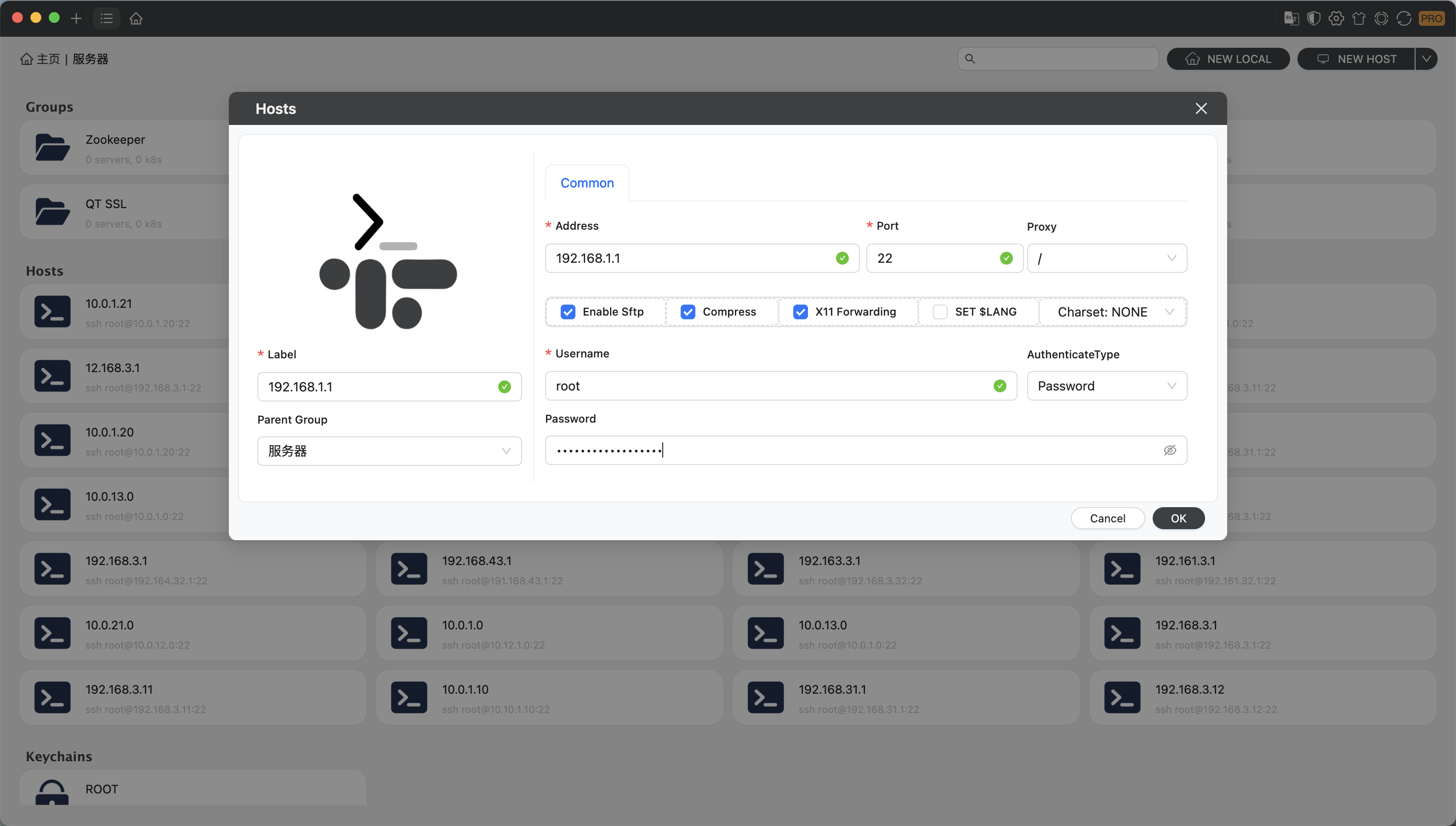

• Go to Home → New HOST

• Fill in the required information

After clicking OK, locate the created label and double-click to connect.
